Your are here: Home >> Products >>Full-automatic Plate Sterilizer Machine
Full-automatic plate sterilizer Machine is sterilization equipment specially designed for dairy drinks or similar liquid materials. It is the ideal equipment that material can extend the shelf life purpose through sterilizing and cooling. At the same time, according to users’ requirements, corresponding configuration of high accuracy of the automatic control system.
Directory
- Usages of Full-automatic Plate Sterilizer
- Main Configuration of Full-automatic Plate Sterilization Machine
- Characteristics of Plate Sterilization Machine
- Main parameters of Plate Sterilizer
- Full-automatic Plate Sterilizer Machine Finished Picture
Usages of Full-automatic Plate Sterilizer
Full-automatic plate sterilizer machine is widely used in fruit juice, tea, milk, wine and other liquids.
Main Configuration of Full-automatic Plate Sterilization Machine
Material pump, balancing tank,hot water system, temperature controller and recorder,electric control sysem, etc.
Characteristics of Plate Sterilization Machine
1、Includes heating section, sterilizing section and cooling section. Tube group has the features of simple structure and small resistance.
2、There is superheating water and cooling water channel during the cleaning which can avoid the scaling.
3、LCD monitor, automatic PLC system, multi-stage recorder to record important temperature.
Main parameters of Plate Sterilizer
Process parameters: 65 ℃ homogeneous to 120 ℃ (30 S)-5 ℃
Cooling water 25 ℃
|
Model |
Capacity
(t/h) |
Steam consumption
(kg/h) |
Steam prssure
(bar) |
Electric power
(kw) |
Body size
(L×W×H) |
Weight
(kg) |
Tube diameter(Φ) | ||
|
material |
steam |
medium | |||||||
|
HE-BR0.1-GCH-1 |
1 |
120 |
6.0 |
2.8 |
1.6×1.4×1.8 |
460 |
25 |
DN25 |
25 |
|
HE-BR0.1-GCH-2 |
2 |
240 |
6.0 |
3.0 |
1.6×1.4×1.8 |
460 |
25 |
DN25 |
25 |
|
HE-BR0.25-GCH-3 |
3 |
390 |
6.0 |
4.0 |
2.0×1.8×2.0 |
460 |
38 |
DN32 |
38 |
|
HE-BR0.25-GCH-4 |
4 |
520 |
6.0 |
4.0 |
2.0×1.8×2.0 |
500 |
38 |
DN40 |
38 |
|
HE-BR0.25-GCH-5 |
5 |
650 |
6.0 |
5.5 |
2.0×1.8×2.0 |
560 |
38 |
DN40 |
38 |
|
HE-BR0.25-GCH-6 |
6 |
780 |
6.0 |
5.5 |
2.3×1.8×2.0 |
600 |
51 |
DN40 |
51 |
|
HE-BR0.25-GCH-8 |
8 |
1040 |
6.0 |
5.5 |
2.3×1.8×2.0 |
720 |
51 |
DN50 |
51 |
|
HE-BR0.25-GCH-10 |
10 |
1300 |
6.0 |
7.8 |
2.5×1.8×2.0 |
820 |
51 |
DN65 |
51 |
|
HE-BR0.4-GCH-15 |
15 |
1950 |
6.0 |
10.5 |
2.8×1.8×2.5 |
1620 |
63 |
DN80 |
63 |
|
HE-BR0.6-GCH-20 |
20 |
2400 |
6.0 |
15.0 |
3.0×3.0×2.5 |
2400 |
63 |
DN100 |
63 |
Notes:
1. The parameters of plate sterilizer in the chart are reference( in kind prevail), if the customer requires otherwise, please put forward.
2. process parameters that need provided：material properties, sterilization process, specific requirements, etc.
3. auxiliary equipment: gas storage tank, air compressor, water storage tank and boiler. (customer need to equipped by themselves).

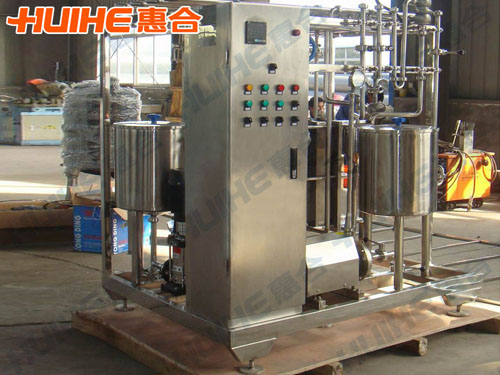

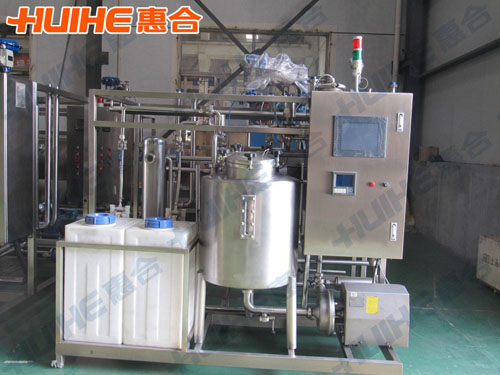

Full-automatic Plate Sterilizer Machine Finished Picture
